120w Tempered Glass Cover, Commercial Area Medium, LED Area Light, 14,400 Lumens Waterproof Street Light
SPECIFICATIONS
DELPHINUS Series is the best alternative for traditional street and area lighting with quick payback, improved performance and preventing light pollution. This fixture is easy in installation, from 50 wattage to 200 wattage and also with other competitive features as below:
Powder-coated aluminum housing
Tool free access to LED driver
Protection switch connector
IP65 (EN60529 compliant) rated water-proof
Optional photocell daylight sensor
Smart Wireless control
Free Dialux Simulations
| MODEL | SG-DPH-50W | SG-DPH-70W | SG-DPH-100W | SG-DPH-120W | SG-DPH-150W | SG-DPH-200W |
| MODEL QTY | 1 | 1 | 1 | 1 | 1 | 1 |
| POWER | 50W | 70W | 100W | 120W | 150W | 200W |
| LUMEN OUTPUT | 6500LM | 9100LM | 13000LM | 14400LM | 19500LM | 26000LM |
| | | | | | | |
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| LED Brand | Lumileds 3030 |
| L70 Hour | ＞60,000 H |
| CRI | 70 80 90 |
| Driver | Meanwell, Sosen, Inventronics |
| Operating Temp | -40°C to 55°C |
| Dimming Solutions | Dimming Solutions |
| Power Factor | ＞0.95 |
| CCT | 3000K 4000K 5000K 5700K 6500K |
| Warranty | 5 yrs warranty |
| Wireless Control | Available |
| IP Rate | IP65 |
| Surge Protection | 10kv |
| Beam Angle | 155°*80° |
| Sensor | Motion Sensor；dayight Sensor；Zigbee Techonology |

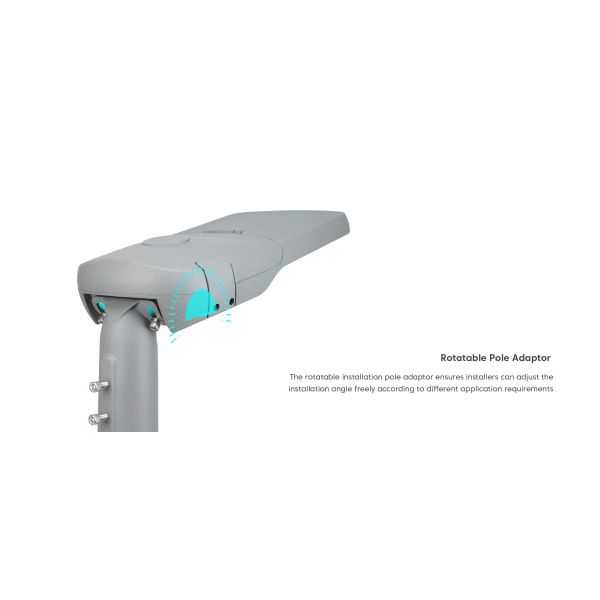

Rotatable Pole Adaptor
The rotatable installation pole adaptor ensures installers can adjust the
installation angle freely according to different application requirements
Integrated 2 in 1 Motion Sensor
Integrative motion sensor to make the streetlight more intelligent and
energy-saving. Daylight sensor and motion sensor model can be realized on one sensor.
Logistics
we can send the goods to the customer's country directly by the international logistics. no matter send by air or by sea.
we will try our best to let the customer to get the parcel more convenient .
(noted:Not bear any fee and tax of the transportation cost.)
